Airport X-ray Luggage Scanner Machine

  • Airport X-ray Luggage Scanner Machine
  • Airport X-ray Luggage Scanner Machine
  • Airport X-ray Luggage Scanner Machine
  • Airport X-ray Luggage Scanner Machine

Airport X-ray Luggage Scanner Machine

    Payment Type: L/C, Western Union
    Terms of Trade: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 1 Days
    Packaging: Plywood carton
    Productivity: 100 set/month
    Brand: Anhushen
    Transportation: Ocean,Land,Air
    Place of Origin: China
    Supply Ability: 100 set/month
    Certificate: CE, ISO 9001
    Port: Shenzhen

Basic Info

Model No.: JH-5030A

Portable: Other

Form: Other

Application: Security Check, Industrial

Type: Conveying X-ray Detector

Certification: CE, ISO

Customized: Customized

Alarm Form: Display Alarm

Tunnel Size(mm): 500(W)×300(H)

Product Description

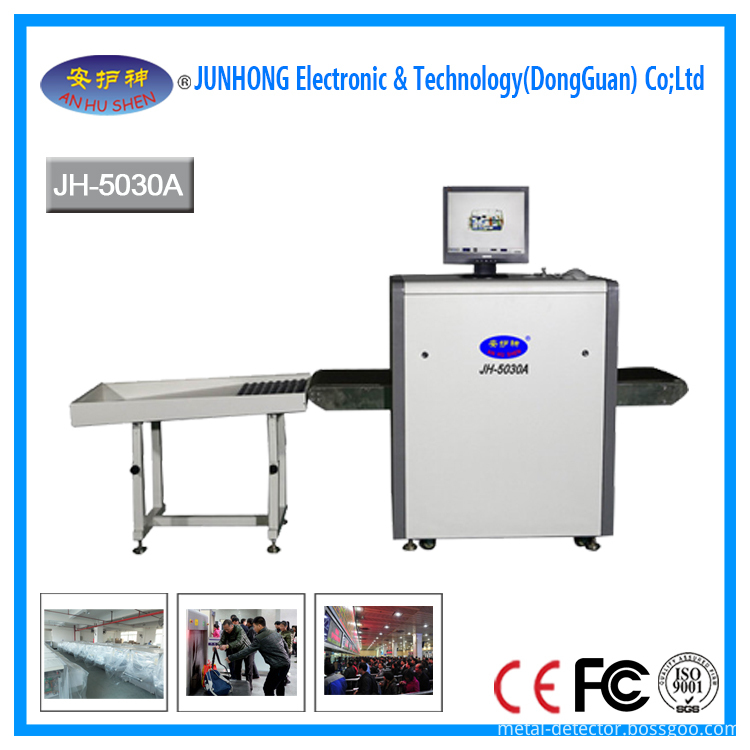

Airport X-ray Luggage Scanner Machine

    Adopt the lasted digital detecting technology, JH-5030A X-ray luggage scanners is special for detecting metal and other dangerous weapons in the baggage or parcels of the human. The X-ray scanner machine is no harm to human body. The airport X-ray luggage scanner usually use in airport to protect the security.


FEATURE:

1.    Alarm by sounds & light:: Alarm by sounds and light when conform tocondition.

2.    Network interface: Could be connect local area network and supportmulti-terminal check baggage at same times

3.    Safety ray: Transmit ray under automatic control, avoids the miss

4.    Image monitoring for user-friendly: The monitor use fold, rotary system,operators adjusts the monitor position willfully according to own need, reduceswearily.

5.    Simple operation by mouse: Without keyboard and work table, control by mouse,save space.

6.    Turn off by a key control: Turn off the machine only need one step: revolvesthe key. The equipment automatic security close-down, does not need complexmany steps, is simpler.

7.    Eagle-eye: Could be expediently observing enlargement area.

8.    Estimate malfunction by self: Automatic estimate malfunction and promptmessage, helpful for the maintenance.



TECHNICAL DATA:

TunnelSize:                     500(W)×300(H)mm

ConveyorSpeed:                0.22 m/s

Conveyor MaxLoad:            50 kg

Single inspection dosage:     < 1.5µGy

Wire Resolution:                0.1mm metal line

SteelPenetration:              8MM armor plate

FilmSafety:                      For ISO1600

Maximum leakage radiation:    <0.3µGY/H



X-RAY GENERATOR:

Orientation:                       Vertically Upward

TubeCurrent:                      0.4~0.5MA(adjustable)

AnodeVoltage:                     80 KV(adjustable)

Angle:                            60°

Generator cooling/workingperiods       Sealed oil bath with forced air/100%

Image performance system:

X-ray sensor: l type photo-diode array detector, 12bit

Monitor: high resolution 17inch color LCD display

Color quality: 24 bit real colors

Edge enhancement: object contour edge is more distinct

Super image enhancement: image detail is more distinct

High penetrate strength display: increase brightness ofdark area in image to display object which is behind high absorbtivity massdistinctly

Low penetrate strength display: increase contrast of lowabsorbtivity mass (easy to penetrate) to display it distinctly

Magnifier: function of partial enlargement

Brightening/dimming: increase brightness ofimage/decrease brightness of image

Image recurrence: display previous twenty images andprocess any one of them

Image restoration: restore image to initial status at thetime of stopping conveyor

Image storing: real time store any image and process itin operation status



Multi-energy function:

Multi-energy color: display organic material for orange,display inorganic material for blue, and display mixture for green

High energy/low energy: switch to display two energytype, high energy stands for metal etc., low energy stands for nonmetallic

Auxiliary function for drugs & explosives: help todetect such dangerous material as drugs & explosives etc.

Audible & visible alarm: give sound and visiblesignal when conforming to condition



OPERATING ENVIRONMENT:

StorageTemperature:            -20ºC to 60ºC

OperatingTemperature:           0ºC to45ºC

RelativeHumidity:              20 to 95% non-condensing

SystemPower:                 220 VAC (±10%) 50±3HZ

Power wastage:                1.0KW (Max)

Noise:                        <65D
